CHẤT LƯỢNG LÀ MỌI THỨ
| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Linsheng Auto II MaxM |
| Số mô hình: | LS-PAT-9 |
| Số lượng đặt hàng tối thiểu: | 1 mảnh |
| Giá bán: | USD319~USD 599/PC |
| chi tiết đóng gói: | Thùng carton |
| Thời gian giao hàng: | 2 tuần |
| Điều khoản thanh toán: | L/C, T/T, PayPal |
| Khả năng cung cấp: | 500pcs/tháng |
| Điện áp: | 24VDC (12VDC cũng có sẵn) | Tải lực: | 16kn, 10kn, 7kn, 5kn, 2kn, 1kn, |
|---|---|---|---|
| Tốc độ: | 6 mm/s - 150mm/s | Đột quỵ: | 25 mm - 1000mm |
| Loại vít: | Acme (bóng là tùy chọn) | Xếp hạng IP: | IP66 / IP67 / IP68 / IP69 |
| Đầu ra tín hiệu: | Hội trường / NỒI | Nhiệt độ làm việc: | -40˚C ~+80˚C |
| Loại động cơ: | Động cơ DC |

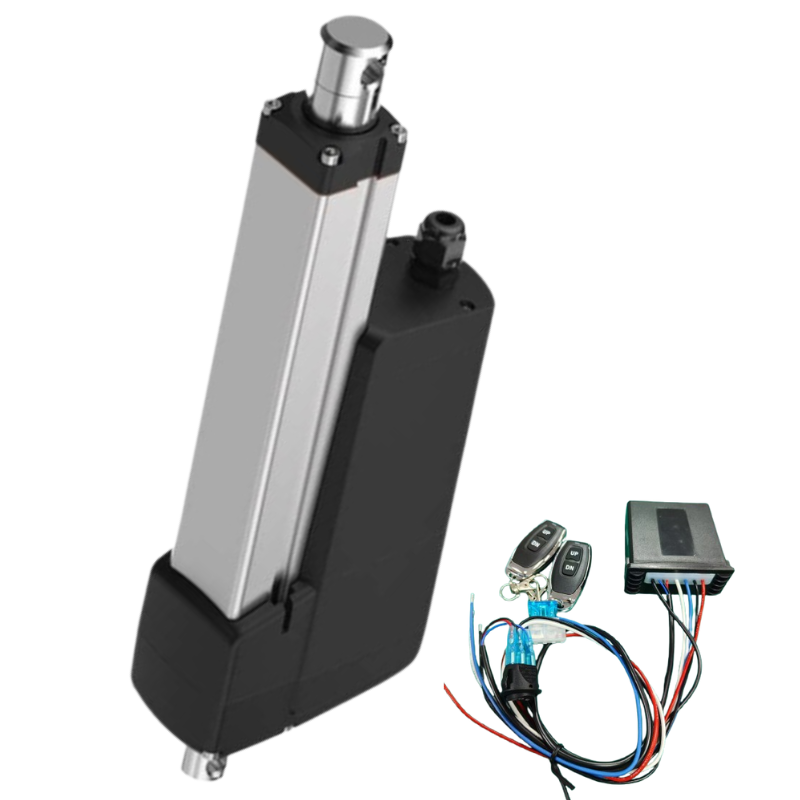

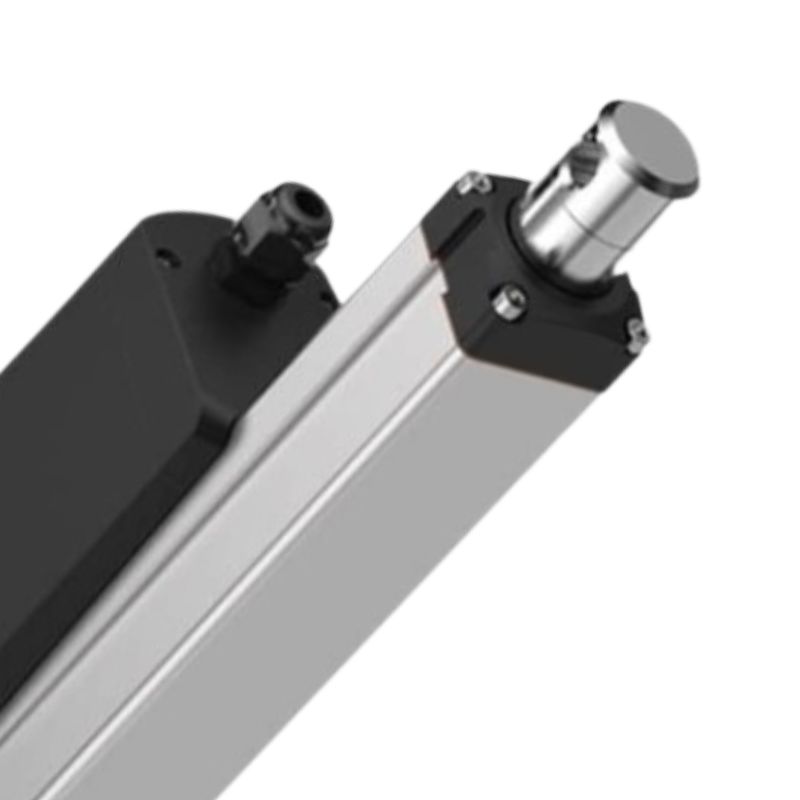

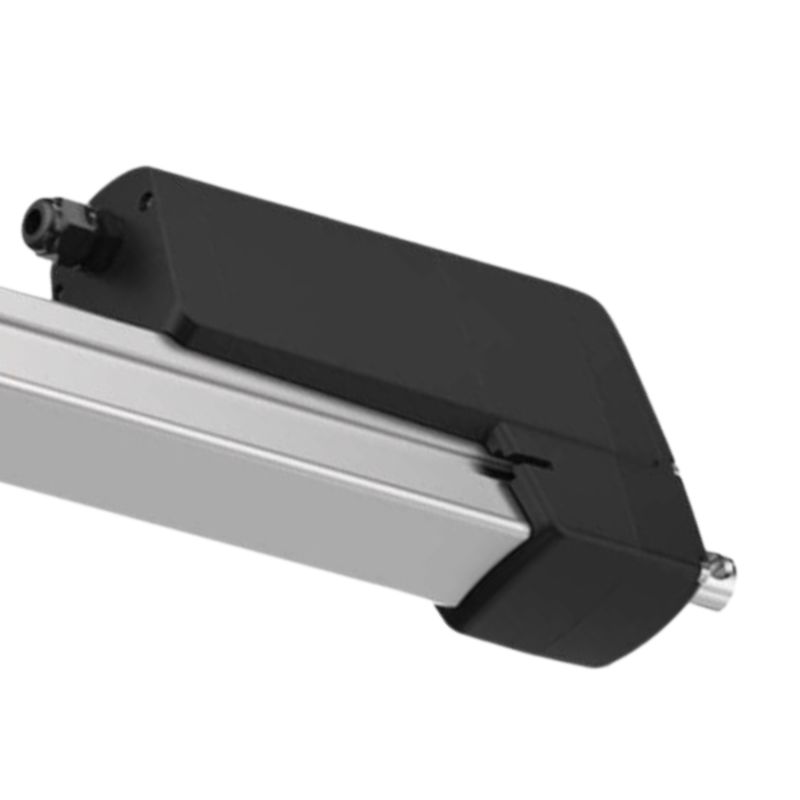

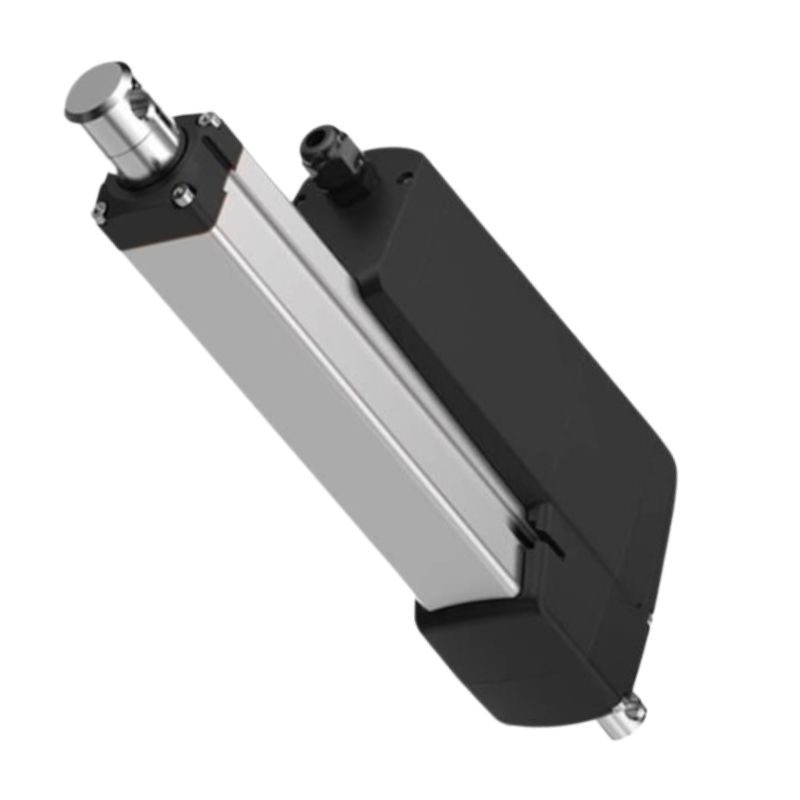

IP69K DC Linear Actuator 24V 16kN High Force ACME Screw for Agricultural Machinery
The DC actuator LS-PAT-9 delivers a maximum thrust of up to 1600 kg while maintaining an excellent travel speed. Its high-quality construction, combined with IP69K waterproof and dustproof protection, ensures reliable performance even in harsh environments. This heavy-duty industrial linear actuator provides a robust and dependable alternative to hydraulic cylinders.
Specifications:
| Model | LS-PAT-9 |
| Working voltage | 24VDC |
| Max. thrust (Push/pull) | 1600KG |
| Speed | 6mm/s - 150mm/s |
| Stroke | 25 - 1000mm |
| Max. IP rating | IP69K |
| Limit switch | Built in |
| Signal output | POT / HALL |
Features:
- High force, fast speed
- Durable structure, high IP protection
- Customizable stroke and load force
- Simple installation, easy to use
Applications:
- Harvester Header Height Control
- Planter and Seeder Depth Control:
- Sprayer Boom Leveling
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
